Delivering America's Lowest-Cost, Fastest-to-Market Onshore Lithium

Welcome to EEARTH

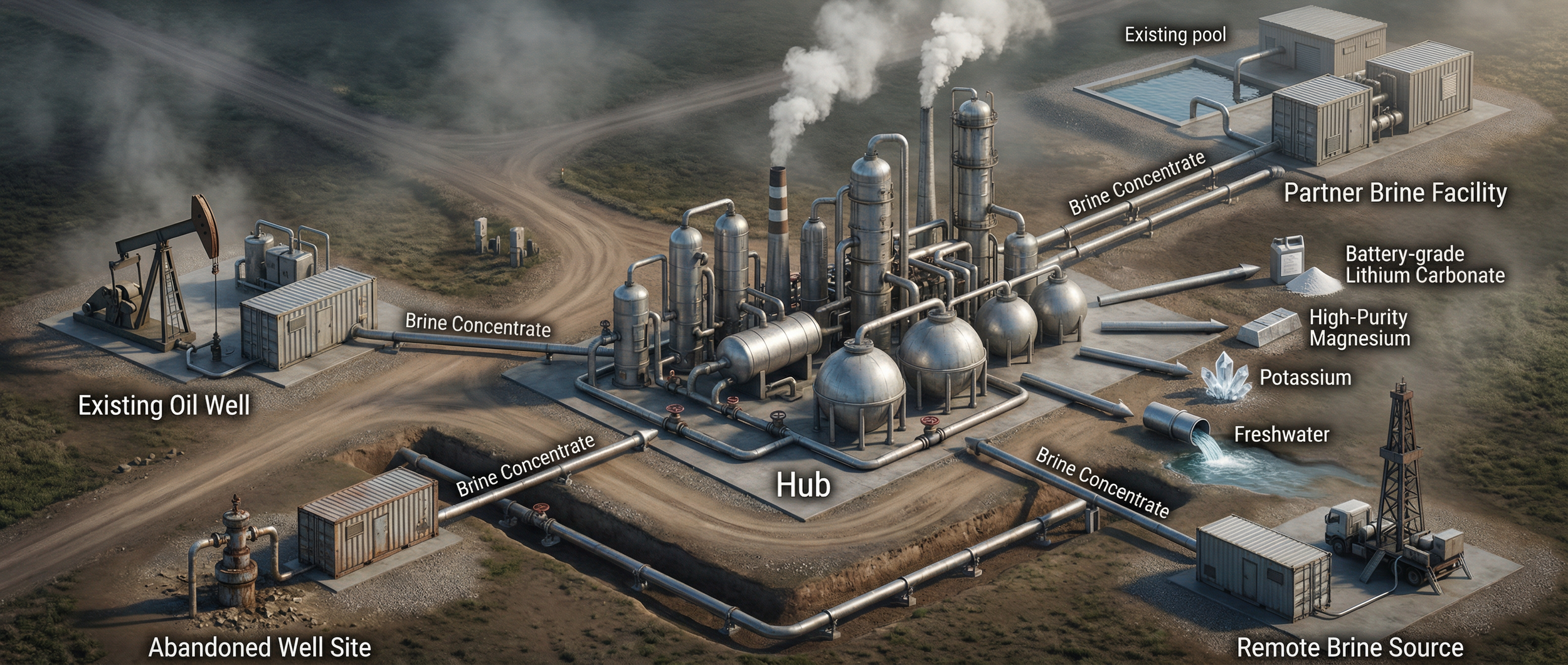

EEARTH Exploration is a vertically integrated, independent lithium producer. A modular, containerized hub-and-spoke design built on proven unit-ops plus our patented MPVD concentration.

Deployed in months. Not years.

The Specs

1,000 tpa

Per Modular Unit

~40%

Lower Total OPEX / Tonne*

5

Containers From Brine to Product

≥99.5%

Battery-grade Li₂CO₃

Months

Deployment Time

The Bottleneck

America doesn't have a lithium shortage. It has a water problem.

Beneath our own soil — in brine and produced water — sits an enormous domestic lithium resource. The barrier was never geology. The stream is simply too dilute to concentrate economically with conventional methods, so it gets pumped back underground as waste while we keep importing.

That single cost — turning dilute brine into a battery-grade product without burning a fortune in energy — is the only problem EEARTH works on. Solve the concentration economics and the rest of the supply chain follows. That is exactly what ELEMENTAL does.

Meet Elemental

The modular lithium refinery.

Lowest cost. Fastest to market. Made in America.

Five containers from brine to battery-grade. A complete refinery that ships on trucks and stands up at the wellhead. Every stage is a proven commercial unit-op, integrated by EEARTH and concentrated by our patented MPVD step.

The ELEMENTAL Process Train

  • Conditioning + Formatting

  • Direct Lithium Extraction

  • Membrane Concentration

  • Softening

  • Ion-Exchange Polishing

  • High-Pressure Concentration

  • MPVD

  • Precipitation

  • Dewatering

  • Drying + Packaging

+Wellhead Pre-Treatment

On raw wellhead brine, an optional front-end runs ahead of Clara — degassing, hydrocarbon and bulk-solids removal, and initial conditioning — so the same modular train delivers battery-grade lithium regardless of feed source.

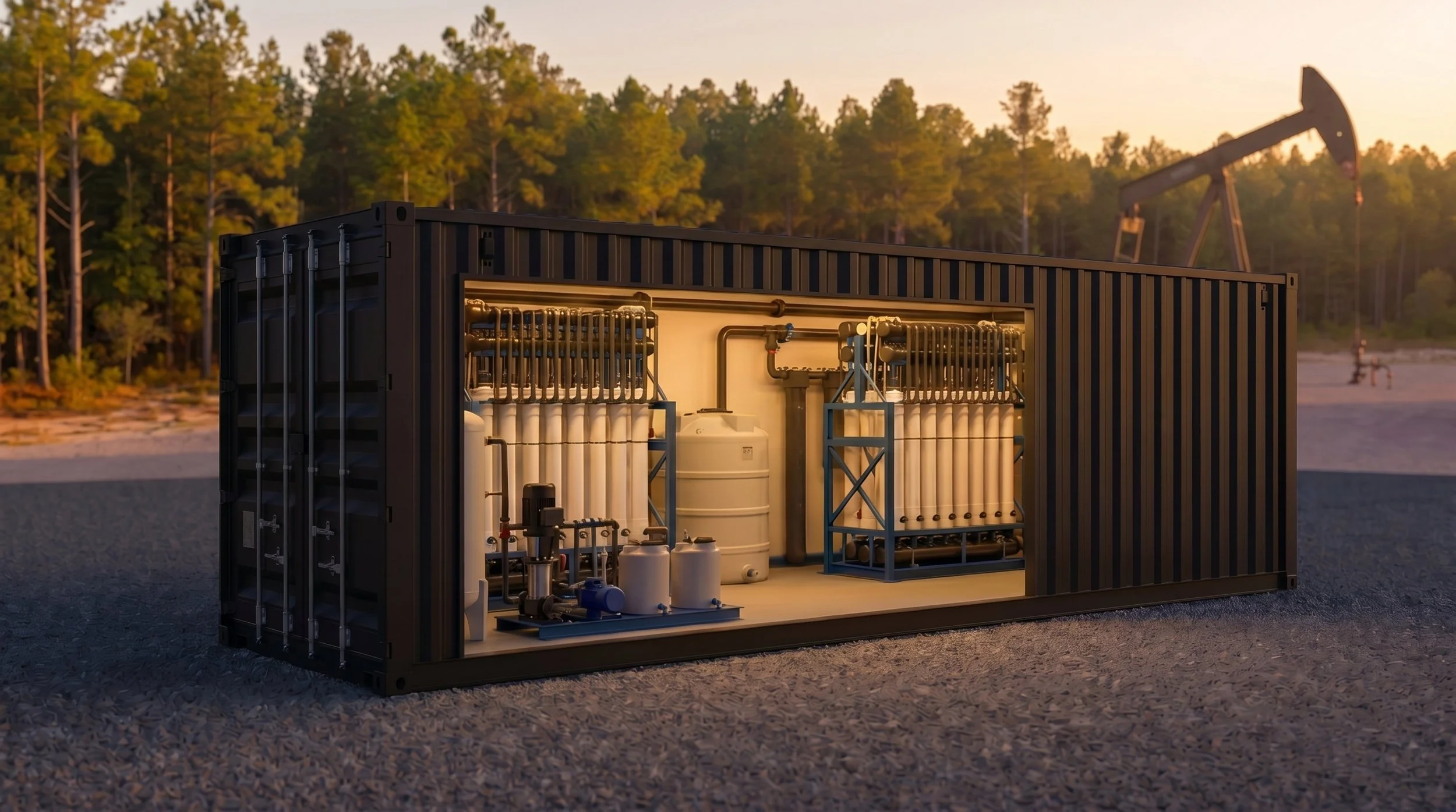

Container 1

C1.1

Clara

Conditioning & Filtration

Raw Smackover tail brine arrives acidic and carrying dissolved iron. Clara lifts the pH with caustic and oxidizes the iron into a filterable solid, then runs two-stage filtration — cartridge followed by ultrafiltration — to drop suspended solids below what the extraction media can tolerate.

Why It Matters: DLE media is unforgiving; iron and solids blind it and shorten its life. Clara protects the most expensive consumable in the train. Get the water right and everything downstream works.

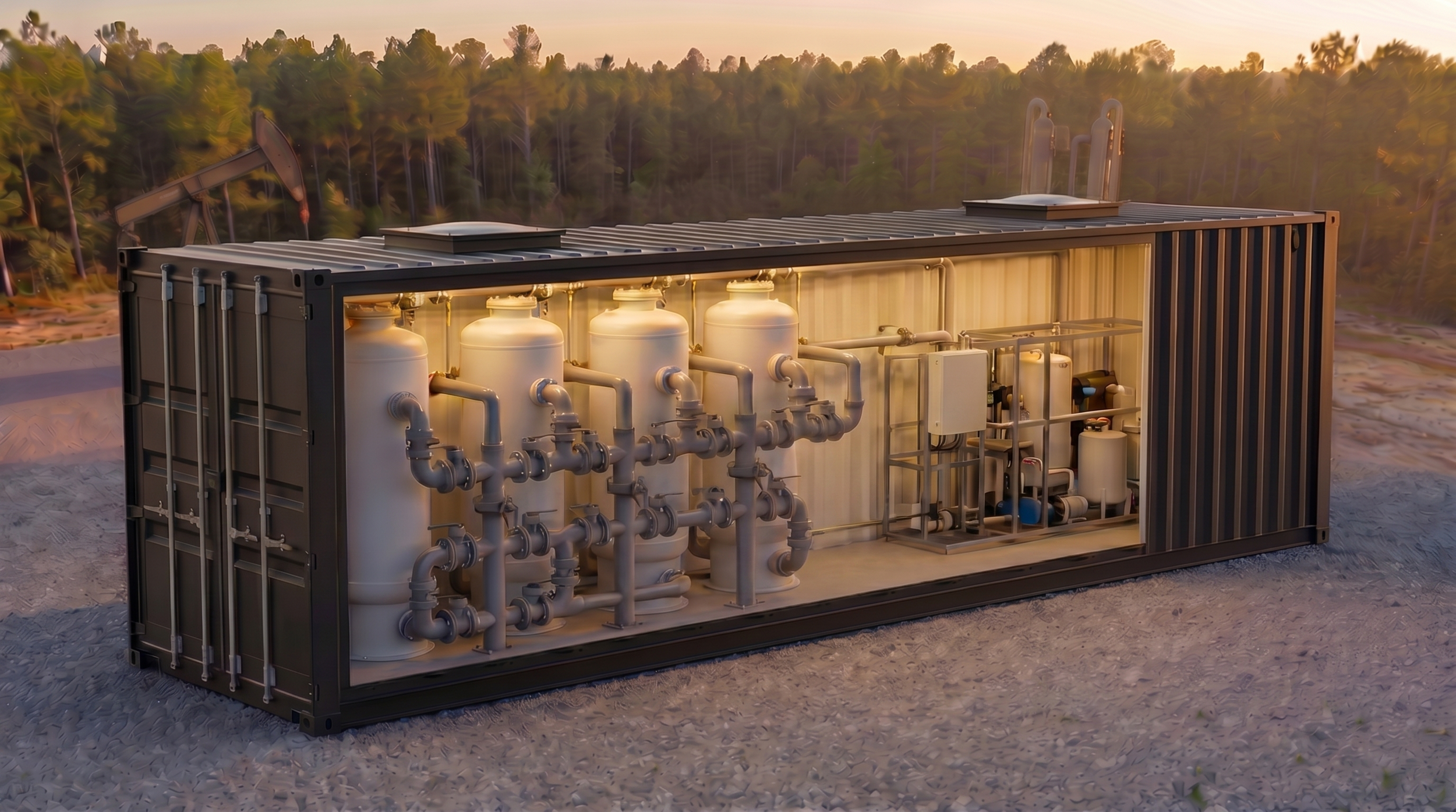

Container 2

C2.1

Capta

Direct Lithium Extraction

Technology-agnostic by design: we pilot and select the best DLE chemistry for each brine — sorbent, ion-exchange, or electrochemical. The unit selectively pulls lithium from a brine dominated by sodium, calcium, and magnesium, producing a dilute lithium-chloride eluate while achieving 95%+ lithium recovery.

Why It Matters: We don't bet the company on one DLE vendor — we integrate the best fit for the resource, de-risking both performance and cost. Selectivity here sets the ceiling for the whole train.

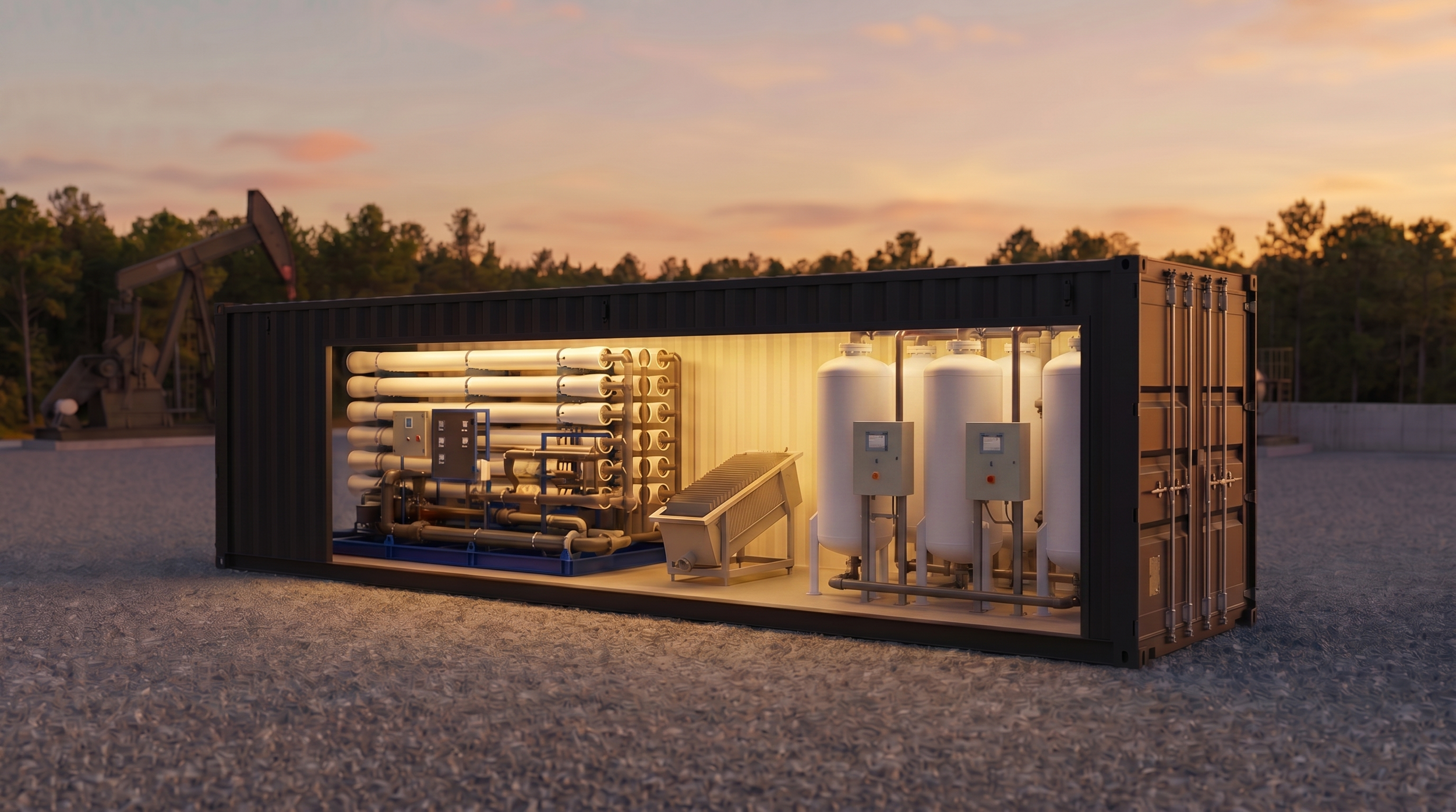

Container 3

C3.1

Densa

Membrane Concentration

The eluate from Capta is mostly water. Densa does the first concentration lift with brackish-water reverse osmosis — moving water with pressure, not heat.

Why It Matters: Every gallon concentrated with membranes is a gallon we never have to boil. This is the first half of the cost advantage.

C3.2

Molla

Softening

Molla chemically softens the stream, dropping bulk calcium and magnesium ahead of the polishing steps.

Why It Matters: Impurities carried into the refinery end up in the product and fail at the customer's gate. Removing the bulk hardness here protects everything downstream.

C3.3

Pura

Ion-Exchange Polishing

Pura is two ion-exchange polishing steps that strip residual hardness and boron to trace levels using selective IX media. Boron is a notorious lithium contaminant — it comes out here, resulting in ≥99.5% battery-grade target.

Why It Matters: This is what lets us promise ≥99.5% battery-grade, consistently — not just on a good day.

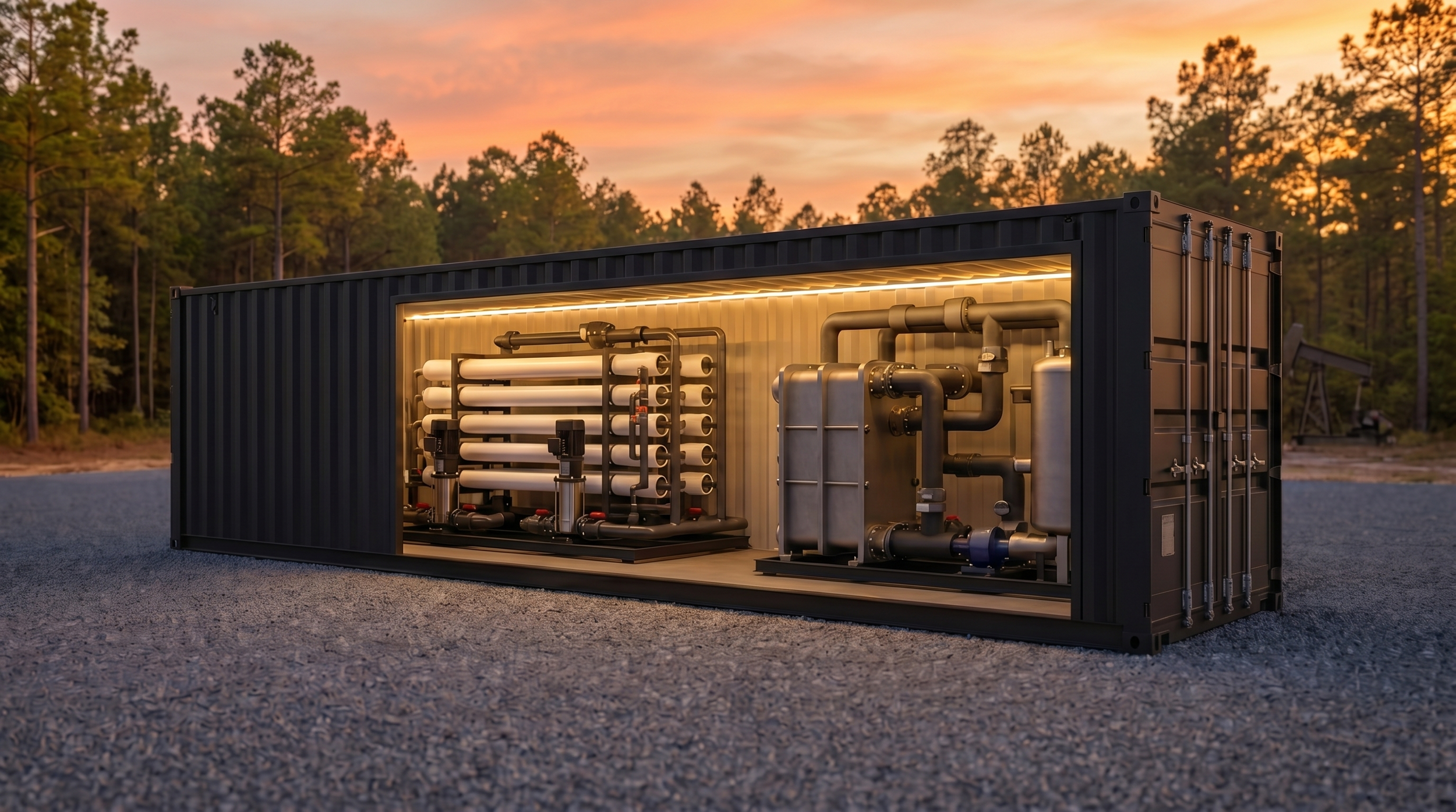

Container 4

C4.1

Salina

High-Pressure Concentration

Salina applies high-pressure seawater RO to push the lithium chloride higher still, recovering clean water that we reuse in the process.

Why It Matters: The second membrane lift — more concentration before any heat is applied, which is the whole point of our cost structure.

C4.2

Tripla

MPVD

Our patented Multi-Phase Vacuum Desalination. It takes 7x more energy to boil water than to freeze it. Under vacuum, Tripla evaporates a small fraction and uses that energy to freeze-concentrate the rest in a closed loop — recovering fresh water as a byproduct.

Why It Matters: A physics advantage, not an operating trick — patented and permanent. This is what makes EEARTH the lowest-cost producer, delivering:

  • 60–75% less energy vs MVR*

  • ~40% lower total OPEX*

  • 90%+ water recovery

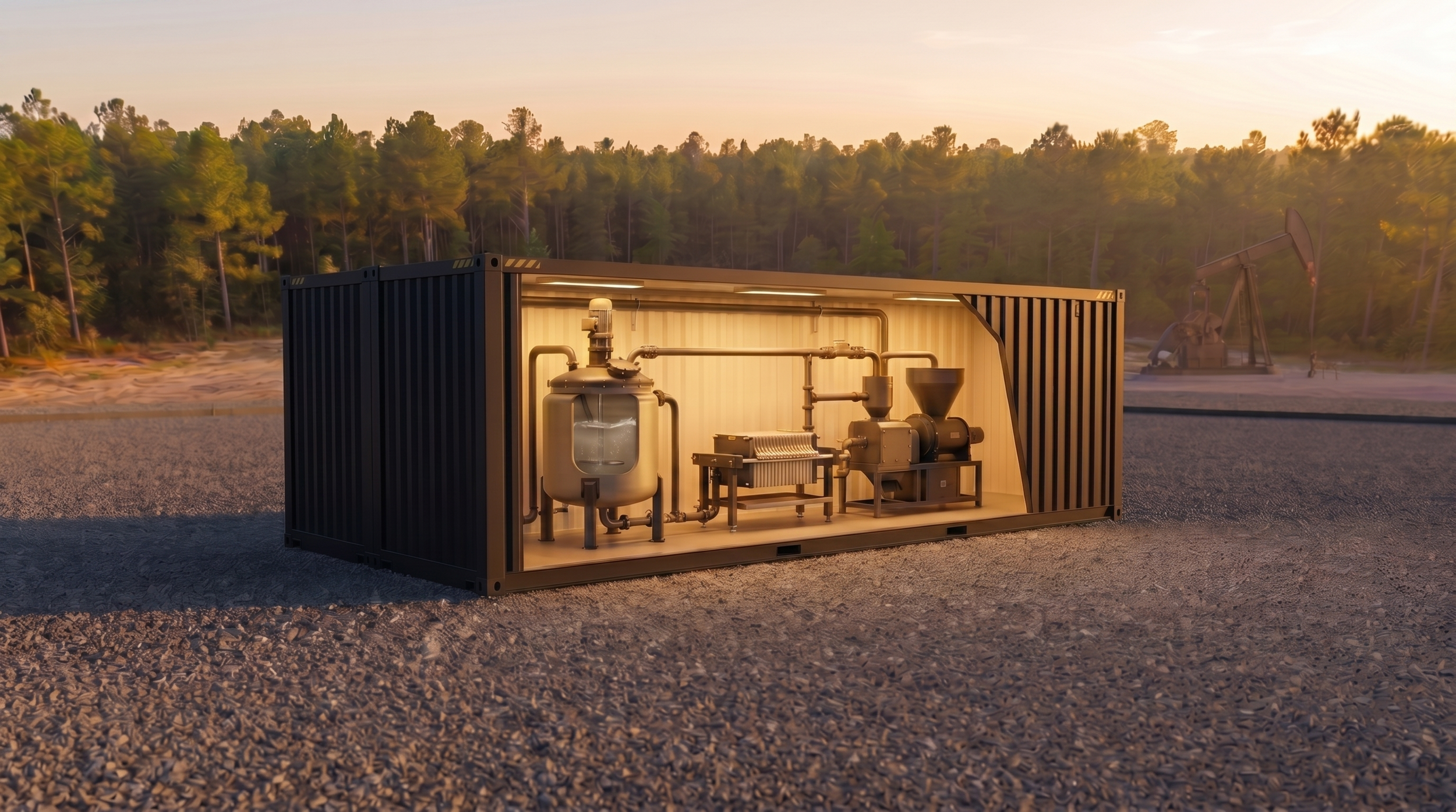

Container 5

C5.1

Carbona

Precipitation

We react the concentrated stream with soda ash to precipitate lithium-carbonate crystals, controlling temperature and chemistry to grow consistent, high-purity crystals. A CO₂ polishing step removes the last trace impurities.

Why It Matters: Crystal quality is product quality. Tight control here is the difference between meeting spec and reprocessing.

C5.2

Pressa

Dewatering

Pressa dewaters the slurry on a filter press, separating the carbonate cake from the mother liquor — which we recycle back into the process.

Why It Matters: Recovering and recycling the mother liquor is yield and water you don't throw away.

C5.3

Vera

Drying & Packaging

Vera dries the cake, mills it to spec particle size, and packages — bagged or in supersacks — under quality control.

Why It Matters: This is where consistency becomes a product a cathode maker can qualify and re-order. End-to-end oversight, in one train.

FEED FLEXIBILITY

One train. No matter the brine in front of it.

ELEMENTAL adapts to the feed, not the other way around — which is why a resource owner with idle, waste, or produced water can plug in without rebuilding anything.

From an existing operation, the stream is already de-gassed and de-oiled. The train starts directly at Clara — turning a disposal cost into battery-grade lithium with zero new wells.

Tail / Waste Brine

Straight from the formation, the brine first runs through a pre-treatment front-end — degassing, hydrocarbon and bulk-solids removal, conditioning — then enters the same modular train unchanged.

Raw Wellhead Brine

THE DIFFERENCE

We don't boil the water. We freeze it.

Conventional plants concentrate brine by boiling water off — fighting the latent heat of vaporization, the single most energy-expensive thing you can do to water. Our patented Multi-Phase Vacuum Desalination (MPVD) exploits a simple physical fact: it takes roughly seven times more energy to boil water than to freeze it. Under vacuum, TRIPLA evaporates a small fraction and uses that energy to freeze-concentrate the rest, recycling energy in a closed loop — and dropping clean fresh water out as a byproduct. This is a physics advantage, not an operating trick. It's patented, and it's permanent.

The ADVANTAGE

60–75%

Less Energy Than Mechanical Vapor Recompression*

~40%

Lower Total OPEX / Tonne*

90%+

Water Recovery

Fresh H₂O

Clean Water As A Byproduct

7:1

Energy Required To Boil Vs. Freeze

11,878,919

U.S. Patent Number

WHY EEARTH DELIVERS

We design it, build it, integrate it, and run it.

The gap in domestic lithium was never a lack of clever chemistry — it was the ability to deliver it consistently, at cost, in the field. That is the part we own end-to-end.

A team that designs, fabricates, integrates, and operates — no hand-offs, no licensed black boxes between us and the product.

Engineers + Fabricators

A sensor and controls layer dynamically tunes the train to brine-chemistry shifts, holding battery-grade spec for the lowest operational cost.

Real-Time Optimization

Commercial, field-proven processes — no science projects at the wellhead. The one breakthrough, MPVD, is the only novel step, and it's already patented.

Proven Unit-Ops

Supply chain locked, in-house lab and pilot, and capital partners prepared to fund projects. We can move when a resource is ready.

Supply Chain + Capital Ready

EEARTH Partners

One refinery. Four ways to plug in.

Your tail or produced-water brine is a disposal cost today. We turn it into battery-grade lithium — partner, lease, or acquire — with zero new wells and no capital.

Resource

Battery-grade lithium carbonate from a producer who controls quality end-to-end — qualified, consistent, and onshore for cathode and cell makers.

Offtake

Patent-protected, lowest-cost-positioned, with a proven team and a modular path to scale — a vertically-integrated producer, not a licensing bet.

Investment Partners

We integrate best-in-class unit-ops at scale. If you make DLE media, equipment, or deliver EPC, ELEMENTAL is a fast, repeatable route to deployment.

Tech & Service Partners

Meet the EEARTH-lings

Our Team

Chris Milligan

CEO, Executive Director

Daniel Whalen

CTO, Technical Director

Scott Goodson

Business Director

Adrian Beirise

Engineering Director

Jason Marheineke

Manufacturing Director

Cambron Clark

Brand Director

CONTACT EEARTH

Let’s work together.

We're not waiting for the lithium supply chain to come back onshore. We're building it. If you own brine, buy lithium, fund this space, build the hardware that runs in it, or just want to learn more — let’s talk.
